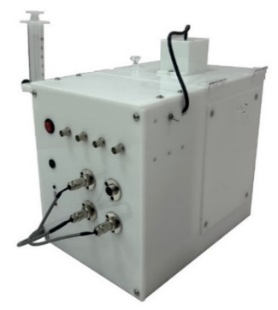

Operant Conidtioning Chamber
Model: BLI-OPC01
Description
The OPERANT CONDITIONING CHAMBER is an experimental apparatus to study cognitive behaviors including learning and memory, and attention. Mice are trained (conditioned) to perform certain actions including nose-poking in response to specific stimuli such as a light or sound, and correct performance is followed by a reward such as food pellets or liquid.
Menu
Features
- Light Design and small size Chamber

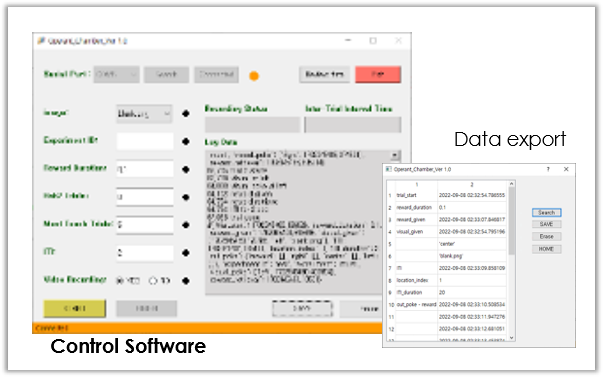

- PC Software for device control and data save/export

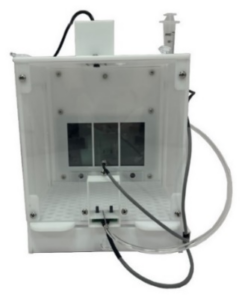

- 3-divided screen shows Que image independently (image can be edited by user)
- Video recording with a CCD camera from the top of the chamber
- LED light and house light for visual cues
- Valve-controlled food dispenser (liquid or pellet) for reward delivery
- 4 Auxiliary BNC ports for TTL I/O, 2 USB ports
- 1 Lan Port and WIFI (For PC connection)
- Wireless communication is available
- (Optional) Sound attenuating Isolation cubicle (See BLI-IC01)
Specifications
| General | |||
| Target Species | Mouse | ||
| Control | PC Software | ||
| Power consumption | DC 12V | ||
| Data acquisition | Data saved as .pkl file format,Video camera file are saved as MP4 | ||
| Operation | |||
| PC Interface | USB(default), LAN(available), Wireless LAN(available) | ||
| Nose poke Sensor | Photo detect sensor | ||
| Reward | Reward liquid drop to bowl and check the reward by Photo deteact Sensor | ||
| Dimension | |||
| Target Species | Mouse | ||
| External | 226 × 360 × 270 mm | ||
| Internal | 216 × 190 × 220 mm | ||
| Material | Plexiglass | ||
| Weight (kg) | 4.7 kg | ||
