Manual Treadmills
Model: BLI-MTR01M/MTR01C/MTR01B
Description
The Manual Treadmill is used for the study with the head-fixed approach in awake and behaving mice. Stress in awake head-fixed mice caused by immobility can be minimized by placing them on the manual treadmill. In head-fixed mice, researchers can study brain activity with imaging and recording at a cellular or subcellular level.
Menu
Features

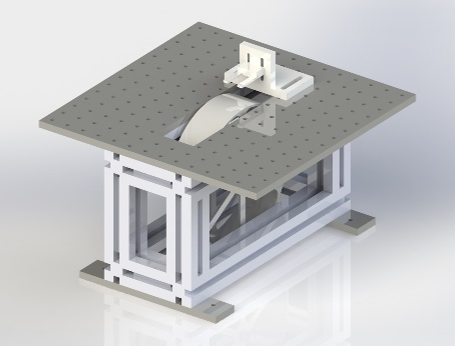

- Drum or Dsic type can be offered upon request

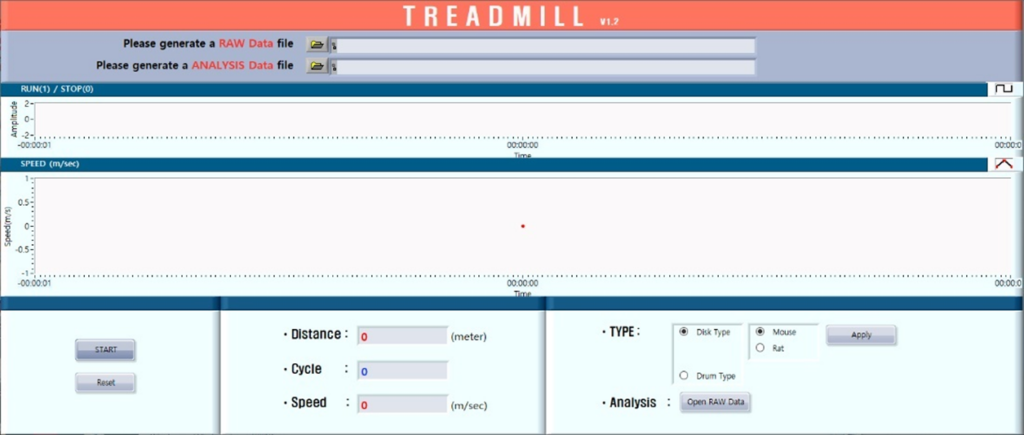

- PC software measuring distance traveled and velocity is provided
- CONTROL BOX connects to PC with USB
- Trigger and Encoder Count via TTL Input/Output
- For the head-fixed setup. the head holding arm and the headplate can be customized
- Addiional divce such a lickometer can be combined with the treamill
Specifications
| General | |
| Target Species | Mouse |
| Type and Dimension | Ask for details |
| Material | Ask for details |
| Operation | |
| Software | Proprietary Software on PC / Start, Stop and Stimulus |
| PC Interface | USB |
| INPUT/OUTPUT | TTL for Trigger / Encoder Count |
| Measures | Distance traveled, Speed, Stimulus count |
| Data acquisition | Saved as Excel file |

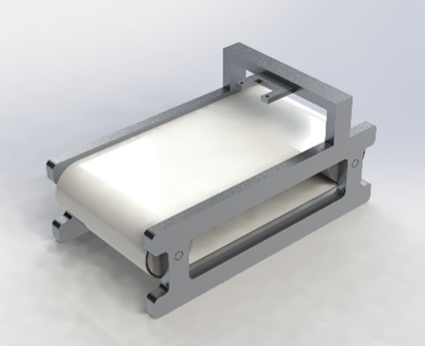

A Belt-type treadmill is also available upon request.
(Note: The Treadmill Counter Software does not support the belt type.)
