Sound Attenuating Isolation Cubicle
Model: BLI-IC01x
Description

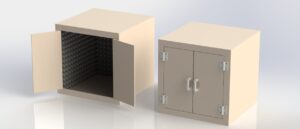

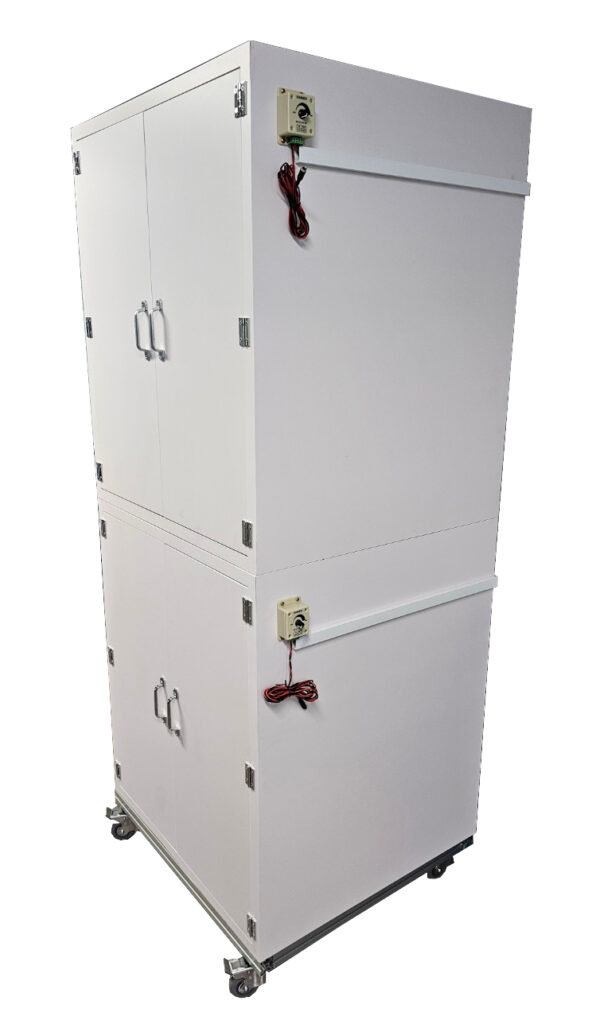

The cubicle is A SOUND-ATTENUATING CHAMBER that isolates small animal subjects from distracting ambient light, sound, and activity. This cubicle is utilized for rodent behavioral experiments including conditioning, activity measurement, and other experiments that require to keep external environmental noise from the laboratory out.
Menu
Features
- LED house light (brightness adjustable using a dimmer switch)
- Low-noise ventilation fan
- Hole(s) in the rear panel for connection cables
- Sound-proof insulation material to attenuate environmental noise
- Pull-out shelf (optional)
- Electromagnetic shielding with copper mesh (optional)
Specifications
| Standard | |
| Dimnsion (W x D x H) | 60 x 60 x 60 cm |
| Inside Dimensions (W x D x H) | 49 x 50 x 53 cm |
| Rear Hole Dimensions (W x H) | ø 8 cm |
| Materials | Plywood / Stainless Steel |
| Fan motor Power consumption | AC100-240V / 50-60Hz |
| LED Power consumption | DC 12V |
The following options can be customized upon request
| Custom-order |
| – Chamber Size |
| – Doors |
| – Pull-out shelf |
| – Cable routing hole (size/location) |
| – Soundproof Materials |
| – Electric Shielding |
| – Ventilation Fan (number/capacity) |
| – Lighting (LED color/lux) |
Ordering information
Contact us to info@beonli.com for custom-order.
